? 3dB Hybrid Coupler

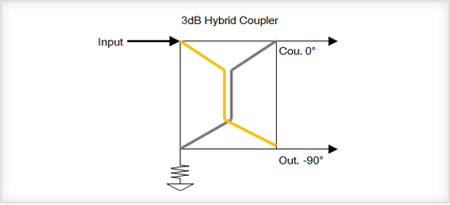

3dB混合耦合器(Hybrid Coupler) 耦合器(Coupler)具有四個端口，起到無電阻(Impedance)變化分配或合成RF信號的功能，具有高隔離度(Isolation)的同時，輸入信號中輸出具有90度相差信號的產品。通過使用低損失介電體(LTCC)實現最小信號損失的產品，熱穩定性及電力耐久性高，耐環境特征優秀，可以無鉛焊錫(Lead Free Solder)制作的表面安裝型(SMD-Type)產品，滿足RoHS-6規格。
? 應用領域
TETRA、GSM、UMTS、LTE帶寬RF放大器、中繼器
? 功能
低插入損失: 0.12~0.20dB max / 高功率: 80W, 200W, 300W / 高隔離度(Isolation): 20dB min
| Part Number |
Freg.Range (MHz) |
Coupling (dB) |
Directivity (dB) |
I.L. (dB) |
VSWR | Phase Bal. (Degrees) |
Avg Power (Watt/cw) |
Dimension (mm) |
| CMX03A03 | 250~470 | ± 0.25 | 25 | 0.20 | 1.10 | 90 ± 2.0 | 200 | 14.22*8.89 |
| CMX06A03 | 470~860 | ± 0.15 | 23 | 0.17 | 1.15 | 90 ± 2.0 | 300 | 14.22*8.89 |
| CMX07Q03 | 620~900 | ±0,20 | 25 | 0.15 | 1.12 | 90 ± 2.0 | 180 | 6.35*5.08 |
| CMX09A03 | 700~100 | ± 0.14 | 25 | 0.12 | 1.12 | 90 ± 2.0 | 300 | 14.22*8.89 |
| CMX09P03 | 700~1000 | ± 0.60 | 18 | 0.5 | 1.15 | 90 ± 4.0 | 5 | 2.00*1.25 |
| CMX09Q03 | 800~1000 | ± 0.20 | 25 | 0.12 | 1.12 | 90 ± 2.0 | 200 | 6.35*5.08 |
| CMX09S03 | 800~1000 | ± 0.15 | 27 | 0.15 | 1.17 | 90 ± 2.0 | 200 | 14.22*5.08 |
| CMX15P03 | 1200~1700 | ± 0.60 | 20 | 0.50 | 1.20 | 90 ± 5.0 | 5 | 2.00*1.25 |
| CMX15Q03 | 1200~1700 | ± 0.20 | 20 | 0.25 | 1.20 | 90 ±3.0 | 200 | 6.35*5.08 |
| CMX19A03 | 1700~2000 | ± 0.20 | 25 | 0.12 | 1.12 | 90 ± 2.0 | 200 | 14.22*8.89 |
| CMX19P03 | 1700~2300 | ± 0.60 | 24 | 0.40 | 1.20 | 90 ± 5.0 | 5 | 2.00*1.25 |
| CMX19Q03 | 1700~2000 | ± 0.20 | 25 | 0.10 | 1.12 | 90 ± 3.0 | 200 | 6.35*5.08 |
| CMX21Q03 | 2000~2400 | ± 0.22 | 25 | 0.10 | 1.12 | 90 ± 2.0 | 200 | 6.35*5.08 |
| CMX25P03 | 2200~2700 | ± 0.60 | 24 | 0.35 | 1.20 | 90 ± 5.0 | 5 | 2.00*1.25 |
| CMX25Q03 | 2200~2800 | ± 0.20 | 23 | 0.12 | 1.12 | 90 ± 2.0 | 80 | 6.35*5.08 |
| CMX32C03 | 2900~3500 | ± 0.50 | 18 | 0.50 | 1.30 | 90 ± 5.0 | 20 | 6.00*3.00 |
| CMX35P03 | 3300~3700 | ± 0.60 | 20 | 0.30 | 1.20 | 90 ± 5.0 | 5 | 2.00*1.25 |
| CMX55Q03 | 5000~6000 | ± 0.30 | 20 | 0.25 | 1.28 | 90 ± 3.0 | 20 | 6.35*5.08 |
| RCP1000Q03 | 960~1100 | ± 0.30 | 20 | 0.35 | 1.20 | 90 ± 3.0 | 80 | 6.35*5.08 |
| RCP1500G03 | 1000~2000 | ± 0.30 | 20 | 0.20 | 1.20 | 90 ± 3.0 | 200 | 14.20*8.90 |
| RCP1500Q03 | 1200~1700 | ± 0.3 | 20 | 0.25 | 1.20 | 90 ± 3.0 | 80 | 6.35*5.08 |
| RCP1850A03 | 1700~2000 | ± 0.15 | 25 | 0.15 | 1.20 | 90 ± 2.0 | 200 | 14.20*8.90 |
| RCP1850B03N | 1700~2000 | ± 0.30 | 21 | 0.12 | 1.20 | 90 ± 3.0 | 300 | 25.40*12.70 |
| RCP1850Q03 | 1700~2000 | ± 0.30 | 20 | 0.20 | 1.20 | 90 ± 3.0 | 80 | 6.35*5.08 |
| RCP1850Q03N | 1700~2000 | ± 0.22 | 23 | 0.15 | 1.20 | 90 ± 3.0 | 180 | 6.35*5.08 |
| RCP1850S03N | 1700~2000 | ± 0.12 | 23 | 0.15 | 1.15 | 90 ± 2.0 | 100 | 14.20*5.08 |
| RCP200B03 | 180~240 | ± 0.30 | 20 | 0.30 | 1.20 | 90 ± 3.0 | 200 | 25.40*12.70 |
| RCP200B03N | 180~210 | ± 0.30 | 20 | 0.30 | 1.20 | 90 ± 3.0 | 300 | 34.00*17.00 |
| RCP2150A03 | 1800~2300 | ± 0.25 | 23 | 0.15 | 1.20 | 90 ± 3.0 | 200 | 14.22*8.90 |
| RCP2150B03N | 2000~2300 | ± 0.30 | 20 | 0.12 | 1.20 | 90 ± 3.0 | 300 | 25.40*12.75 |
| RCP2150Q03 | 1900~2300 | ± 0.30 | 20 | 0.20 | 1.20 | 90 ± 3.0 | 80 | 6.35*5.08 |
| RCP2150S03 | 2000~2300 | ± 0.30 | 23 | 0.15 | 1.20 | 90 ± 2.0 | 100 | 14.22*5.08 |
| RCP2250C03 | 1700~2400 | ± 0.25 | 25 | 0.20 | 1.20 | 90 ± 3.0 | 20 | 6.00*3.00 |
| RCP2300Q03 | 2200~2400 | ± 0.30 | 20 | 0.20 | 1.20 | 90 ± 3.0 | 80 | 6.35*5.08 |
| RCP2300S03 | 2200~2400 | ± 0.30 | 23 | 0.15 | 1.20 | 90 ± 2.0 | 100 | 14.22*5.08 |
| RCP2500A03 | 2300~2700 | ± 0.15 | 25 | 0.13 | 1.20 | 90 ± 3.0 | 130 | 14.22*8.89 |
| RCP2500B03N | 2300~2800 | ± 0.30 | 20 | 0.20 | 1.20 | 90 ± 5 | 130 | 25.40*12.70 |
| RCP2500S03 | 2300~2700 | ± 0.15 | 23 | 0.15 | 1.20 | 90 ± 3.0 | 100 | 14.22*5.08 |
| RCP2600C03 | 2400~2800 | ± 0.25 | 23 | 0.25 | 1.20 | 90 ± 2.0 | 20 | 6.00*3.00 |
| RCP2650Q03 | 2400~2800 | ± 0.30 | 20 | 0.20 | 1.20 | 90 ± 3.0 | 80 | 6.35*5.08 |
| RCP2650S03 | 2400~2800 | ± 0.30 | 23 | 0.15 | 1.20 | 90 ± 3.0 | 100 | 14.22*5.08 |
| RCP3000A03 | 2700~3100 | ± 0.15 | 25 | 0.15 | 1.20 | 90 ± 3.0 | 100 | 14.22*8.89 |
| RCP3500A03 | 3400~3600 | ± 0.15 | 20 | 0.2 | 1.2 | 90 ± 3.0 | 200 | 14.22*8.89 |
| RCP3500Q03 | 3300~3800 | ± 0.30 | 20 | 0.30 | 1.20 | 90 ± 3.0 | 80 | 6.35*5.08 |
| RCP350D03N | 225~512 | ± 0.50 | 20 | 0.30 | 1.28 | 90 ± 3.0 | 200 | 16.51*12.20 |
| RCP4500Q03 | 4300~4700 | ± 0.30 | 14 | 0.60 | 1.40 | 90 ± 3.0 | 80 | 6.35*5.08 |
| RCP450A03 | 380~520 | ± 0.15 | 20 | 0.30 | 1.20 | 90 ± 3.0 | 200 | 14.20*8.90 |
| RCP450D03N | 380~520 | ± 0.20 | 23 | 0.20 | 1.15 | 90 ± 2.0 | 200 | 16.51*12.20 |
| RCP650A03 | 470~860 | ± 0.35 | 23 | 0.20 | 1.20 | 90 ± 3.0 | 200 | 14.20*8.90 |
| RCP650B03N | 470~860 | ± 0.3 | 23 | 0.15 | 1.30 | 90 ± 3.0 | 500 | 34.00*17.00 |
| RCP890A03 | 815~960 | ± 0.15 | 23 | 0.15 | 1.20 | 90 ± 3.0 | 200 | 14.20*8.90 |
| RCP890B03 | 815~960 | ± 0.30 | 21 | 0.12 | 1.20 | 90 ± 3.0 | 300 | 25.40*12.70 |
| RCP890D03 | 815~960 | ± 0.30 | 21 | 0.12 | 1.20 | 90 ± 3.0 | 200 | 16.51*12.20 |
| RCP890Q03 | 815~960 | ± 0.3 | 18 | 0.35 | 1.20 | 90 ± 3.0 | 80 | 6.35*5.08 |
| RCP890S03N | 815~960 | ± 0.20 | 21 | 0.20 | 1.20 | 90 ± 3.0 | 100 | 14.20*5.08 |
